From a sample primary tube, PACE fills CBS High Security straws and automatically seals both ends of CBS High Security 0.3 or 0.5 mL straws, which can be pre-identified.
PACE is the ideal CBS robot for medium to large-scale projects with preset archiving protocols.
PACE is compatible with CBS High Security straws - pre-printed or not - with bar code or alphanumerical code.

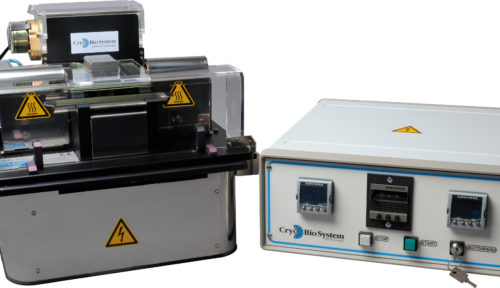

The system comprises a filling and sealing unit with control unit.
The straw throughput is protocol-dependent (e.g. the number of straws filled per primary tube and the number of biological samples).
Start, maintenance and shutdown time: 15 minutes per day.
All potentially contaminated parts can be cleaned with an alcohol-based solution or a non-corrosive surface decontamination agent.
PACE can be placed on the lab bench or under a laminar air flow hood with sterile straws and nozzles and requires a power outlet.
- PACE - Dimensions (L x W x H): 380 x 300 x 370 mm - Weight: 25 kg.
- Control unit - Dimensions (L x W x H): 410 x 365 x 155 mm - Weight: 14 kg.
- Power supply: 110 or 220 V/60 or 50 Hz
||PACE 220 V/50 Hz
||PACE 110 V/60 Hz
||Sterile CBSTM injection nozzle (in 5 x 10)
||Long sterile CBS injection nozzle
|| blue (in 5 x 5)
